Gazi 1 HP jet pump

Gazi TJSW-10M Full Specification

Model

✅ TJSW-10M

Brand

Gazi

Pump Type

Surface

• ApplicationSuitable to handle clean or slightly cloudy, non-corrosive water not surpassing 50°C temperature
• Suitable to handle clean or slightly cloudy, non-corrosive water not surpassing 50°C temperature
• Pump sideCast-iron pump body and bracketBrass impellerStainless steel shaltHigh-quality mechanical seal
• Cast-iron pump body and bracket
• Brass impeller
• Stainless steel shalt
• High-quality mechanical seal
• Electric motorHeavy dutyContinuous serviceInduction motor built to IEC 2-3 issue 1-1974 ref. 355 regulations
• Heavy duty
• Continuous service
• Induction motor built to IEC 2-3 issue 1-1974 ref. 355 regulations
• Security & protectionBuilt-in overload motor protector for Single-phase versionProtection according to IP44 Standards. Size according to UNEL-MEC speafications
• Built-in overload motor protector for Single-phase version
• Protection according to IP44 Standards. Size according to UNEL-MEC speafications
• Quality ControlAll our pumps are individually factory tested according to UNI 6871-71P cat Ill Standards
• All our pumps are individually factory tested according to UNI 6871-71P cat Ill Standards
• Production standard & built regulations: ISO 2548
• Voltage Single phase: 180V-220VThree phases: 380V-440V
• Single phase: 180V-220V
• Three phases: 380V-440V
• Maximum allowable deviation from the rated voltage: ±5%
• (Other voltages available on demand).
• Frequency: 50Hz.
• Warranty Period: 24 months

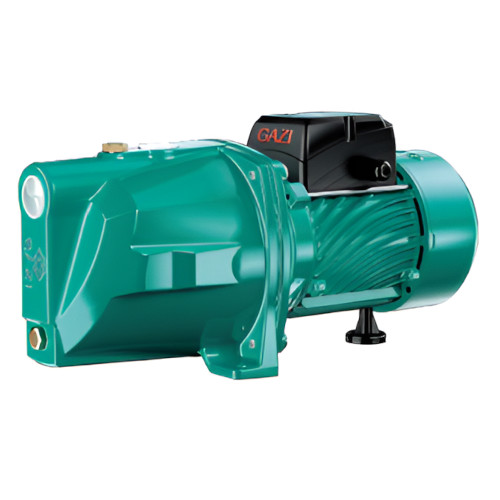

Gazi TJSW-10M Description

This Gazi TJSW-10M is a surface pump that is created for a wide range of applications. It is self-priming, meaning it can automatically draw water from a well or reservoir, making it ideal for use in locations where water needs to be moved or circulated efficiently. The pump comes with a 1HP energy output, which indicates that the pump is capable of moving a significant amount of water.
